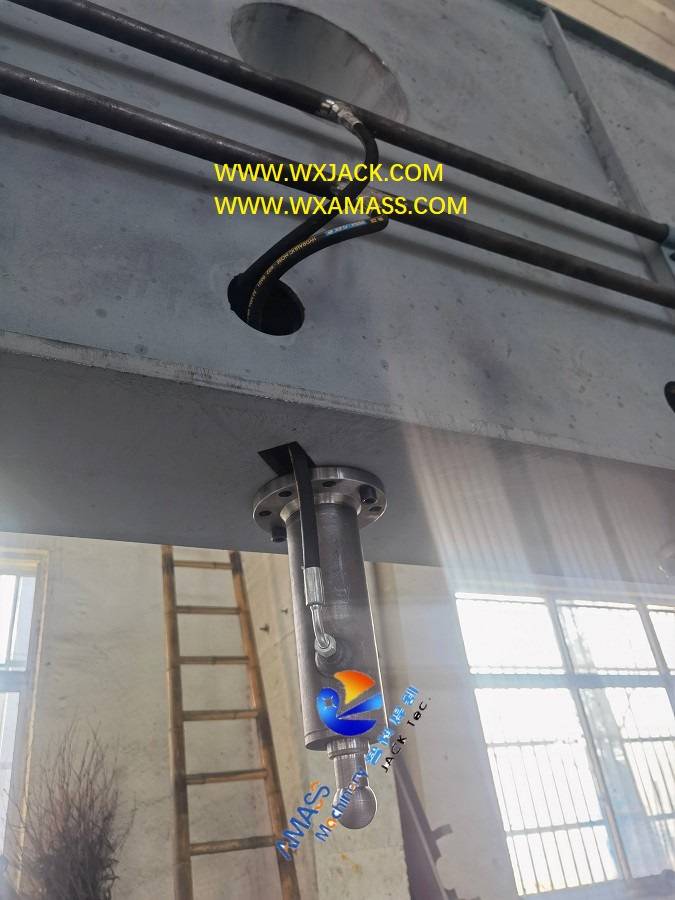

A. Property and Usage of SXBJ-18 Welding Groove Machining Equipment Large Plate Edge Milling Machine:

1. Nature: XBJ and SXBJ models Edge Milling Machine is a kind of 1^st operation equipment following the process steps of plate cut and press brake, for the purpose of welding groove machining on edges of workpieces sheet metal plate;

2. Types of Welding Grooves Available from SXBJ-18 Large Plate Edge Mill Machine:

1) In practical application, welding grooves that can be machined from this Large Plate Welding Groove Machining Equipment Edge Milling Machine varies, based on customers demand, which is shown in below illustration:

2) The typical 6 kinds of welding chamfers to be available from double heads Edge Milling Machine: (Fig.1)

3) Processing of edges for welding preparation from SXBJ-18 Heavy duty Plate Edge Mill Machine: V and X chamfer, angle range in the scope of 25°-60°, blunt to 2.0 mm. Please check below photo:

4) The 30° V chamfer with 5mm blunt, finished on edges of 80mm thickness steel plate, delivered from Wuxi JACK SXBJ-18 Heavy duty Plate Edge Milling Machine Welding Groove Machining Equipment: (Fig.2)

3. The Workpieces Applicable for SXBJ-18 Large Plate Edge Milling Machine Welding Groove Machining Equipment:

1) The workpieces of Edge Mill Machine can be sheet metal plates of various common seen materials: Carbon steel, stainless steel, copper...;

2) The maximum sizes of workpieces in SXBJ-18 Large Plate Edge Milling Machine: Length is up to 18,000mm, width is up to 3,000mm, and thickness is up to 100mm. Please check it shown in below photo:

3) Heaps of 100mm thick large carbon steel plates stocked at outdoors working sites of Wuxi JACK SXBJ-18 Long Stroke Large Steel Plate Edge Mill Machine: (Fig.3)

4. In all, this SXBJ-18 double heads long stroke Edge Milling Machine is a kind of high efficiency 1^st operation Large Plate Welding Groove Machining Equipment, for producing welding grooves of various kinds on double edges of sheet metal plates with various specifications, especially steel plate, ahead of welding operation.

B. Application of SXBJ-18 Welding Groove Machining Equipment Long Stroke Large Steel Plate Edge Milling Machine:

1. Position: This SXBJ-18 model of Heavy duty Plate Edge Milling Machine is the largest model of its kind at present, in the product group of XBJ and SXBJ series single head and double heads Edge Milling Machine;

2. The only branch of Edge Milling Machine which is “Bigger” than SXBJ-18 is: FXBJ and GFXBJ series Four to Five Heads configuration Heavy duty Plate Edge Milling Machine. Example models are FXBJ-18 four heads configuration and GFXBJ-23 five heads configuration Large Plate Edge Milling Machine;

3. Strong Capability: This SXBJ-18 Large Plate Welding Groove Machining Equipment Edge Milling Machine has the ability on implementing sheet metal edge milling operation, on double edges of metal plates made from different materials, such as Carbon Steel/ High Manganese Steel/ Stainless Steel/ Al Alloy/ Copper, etc.;

4. Applicable Application Business Cases of SXBJ-18 Heavy duty Plate Edge Milling Machine:

1) Types of Equipment: This SXBJ-18 Sheet Metal Edge Milling Machine belongs to general purpose 1^st operation equipment, focusing on auxiliary welding preparation;

2) Working Scenarios: This Large Plate Edge Mill Machine can be extensively applied at across nearly every facility/ plant/ working site of Heavy Industry, Large scale Industry, Machinery Industry, Energy Industry, etc.;

3) Why Necessary? At these working sites of Welding Groove Machining Equipment Edge Milling Machine, large sums of metal plates are utilized as raw material, and need to be to welded into finished or semi-finished products. Hence entails process step of steel plate beveling, which is realized in the Large Plate Edge Mill Machine;

4) Application of SXBJ-18: Based on specific size, different models of Steel Plate Edge Milling Machine have its target customers. Of which large equipment such as SXBJ-16/ SXBJ-18 are usually installed at Shipbuilding, Port Machinery, Bridge Industry, for machining large size and heavy weight steel plates in high efficiency. Please check below photo:

5) Running of Wuxi JACK SXBJ-18 Welding Groove Machining Equipment Large Plate Edge Milling Machine at Shipbuilding Facility customer site: (Fig.4)

C. Put in Use of SXBJ-18 Long Stroke Large Steel Plate Edge Mill Machine:

1. Recommended Working Environment of the SXBJ-18 Heavy duty Plate Edge Milling Machine:

1) Overall Dimension of SXBJ-18: For this Large Plate Edge Mill Machine with the maximum 18m valid plate edge chamfering stroke, the total length of its mechanical machine bed is up to 23~ 24m, which equals to 5~6m longer than the 18m valid stroke. So, this Large Plate Edge Milling Machine occupies fairly large area of space;

2) Installed Outdoors: For this reason, some customers set the place for this big Plate Edge Milling Machine outdoors, which is the case with the SXBJ-18 Large Plate Edge Milling Machine shown in the attached pictures. This is not a preferred way of arrangement on the Large Plate Welding Groove Machining Equipment. It should be viewed as a makeshift by customers;

3) The outdoors installed and operated Wuxi JACK SXBJ-18 Welding Groove Machining Equipment Large Plate Edge Milling Machine: (Fig.5)

2. Wuxi JACK Suggestion on Placement of SXBJ-18 Large Plate Edge Milling Machine:

1) The first priority or best choice is to install the Edge Milling Machine at indoors workshop;

2) If there is no sufficient space inside workshop for installation of such Large Plate Welding Groove Machining Equipment, a rainproof shed or canopy had better be constructed for the Heavy duty Plate Edge Mill Machine;

3) If the first and second measures can not be made, the last resort is to cover the outdoors running Large Plate Edge Milling Machine when not in use, especially during the intrusion of wind and rain.

D. Technical Parameters of SXBJ-18 Welding Groove Machining Equipment Large Plate Edge Milling Machine:

Below are technical specifications of this SXBJ-18 Double Heads Large Plate Edge Mill Machine:
