Усовершенствованный станок для резки пересечения труб с ЧПУ CP6-1400/15 Medium Control

3-claw chuck type; For small and medium pipe
штат:
Количество:

A. The Application and Usage of CP6-1400/15 Flame and Plasma CNC Pipe Cutting Machine:

1.       The 6 Axis Φ1400mm series CNC Pipe Intersection Cutting Machine is the sophisticated version for small to medium diameter range of pipe, and a special made model:

1)       Generally speaking, the 5 Axis control Flame and Plasma CNC Pipe Cutting Equipment can meet majority demand on pipe beveling and chamfering, for small to medium size pipe:

2)       The 5 Axis Denotation in CNC Pipe Cut Machine: (Fig.1)

Fig1 CNC Pipe Intersection Cutting Machine 11

2.       On the other hand, there do exist certain conditions that calls for sophisticated cutting and beveling for medium diameter pipes in CNC Pipe Cutting Machine:

The Applicating Examples on sophisticated 6 Axis CNC Pipe Cutting Machine:

1) For machining stainless steel materials/ Alloy steel of pipes;

2) Plasma cutting for pipe: Plasma CNC Pipe Cutting Machine;

3.       The 6th axis V axis in Plasma and Flame CNC Pipe Cutting Machine for controlling cutting torch movement along pipe radius direction: (Fig.2)

Fig2 CNC Pipe Intersection Cutting Machine

1) This means the positioning of cutting torch along pipe radius way is controlled not only with pipe rotation Y axis, but also with V axis;

2) The 9 types of typical bevels available for 6 axis CNC Pipe Intersection Cutting Machine: (Fig.3)

Fig3 CNC Pipe Cutting Machine 12- Grooves




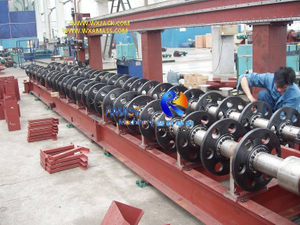

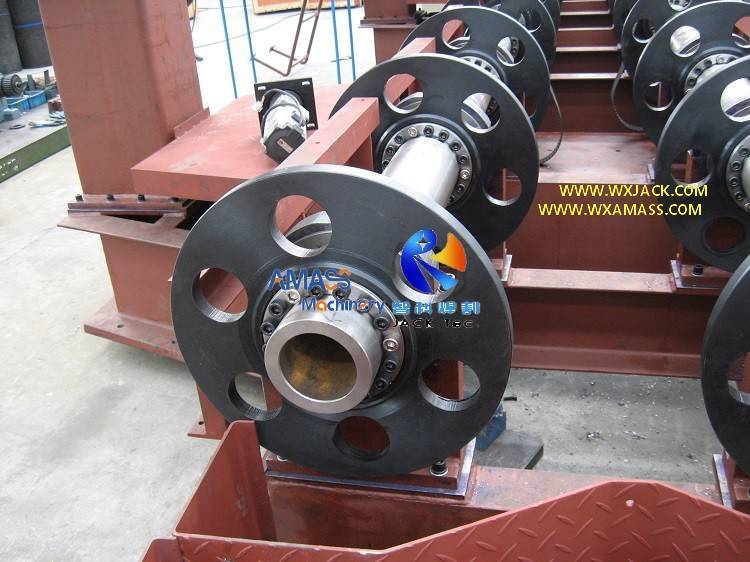

B. Units in CP6-1400/15 CNC Pipe Cutting Machine:

1. Cutting Torch in 6 Axis Plasma and Flame CNC Pipe Cutting Equipment: (Fig.4)

Fig4 CNC Pipe Cutting Machine 19-2

As can be found from the above photo, the cutting torch equipped in 6 axis and 7 axis CNC Pipe Cutting Machine has angular ruler for measuring its tilting angle, as well as mechanism for 360° swiveling unit;

2. Control system of CP6-1400/15 CNC Pipe Intersection Cutting Machine:

1)      Control system of the CNC Pipe Cutting Machine has all the control function and hardware configuration necessary for pipe intersection cutting, which conforms to Chinese national electric standard and IEEE, in terms of insulation/ Protection/ Cable arrangement;

2)       Depends on practical condition at customer site, the control board of CP series CNC Pipe Intersection Cutting Machine can be either of worktable style, or in the way of pendant;

3)       For this medium size Φ1400mm specification CNC Pipe Cut machine, this is standing worktable type: (Fig.5)

Fig5 CNC Pipe Intersection Cutting Machine Industrial computer 1

4)       Worktable in medium size sophisticated CP6-1400/6 CNC Pipe Cutting Machine is easy in operation, conforming to strict standard on the aspect of design/radiation/ insulation and cable arrangement, fully taking into account rigorous environment and shield interruption of flame cutting and plasma cutting, ensuring long term and normal working of the CNC Pipe Cutting Machine;

5)       All the input and output control signal of the control board are isolated with I/O board. The elements are reasonably arranged, and cables are tidily laid, along the whole length of CNC Pipe Intersection Cutting Machine.



C. Precondition on Workpieces in CP6-1400/15 CNC Pipe Intersection Cutting Machine:

1.       To fully guarantee high quality finished products, raw material pipes of this CNC Pipe Intersection Cutting machine should meet the precision demand of:

1)       Roundness of pipe: Ovality of the cross section of pipe should not exceed 0.5% that of pipe diameter;

2)       Welding reinforcement on longitudinal seam of pipe: If this welding reinforcement is protruding enough to affect smooth revolve of pipe during running of the CNC Pipe Cutting Machine, it needs to be grounded off;

2.       In all, to have this sophisticated CP6-1400/15 CNC Pipe Cutting Equipment fully delivering satisfactory performance, every detail involved should be taken good care.



D. Technical Parameters of CP6-1400/15 CNC Pipe Cutting Machine:

Below is specification of 6 Axis 1400/15 Flame and Plasma sophisticated CNC Pipe Cut Machine:


Model

Technical Parameter

6 Axis CNC-CP 1400/15

Sophisticated CNC Pipe Intersection Cutting Machine

Diameter Range of Pipe

300 ~ 1400 (mm)

Max. Length of Pipe (mm)

15,000

Thickness of Pipe (mm)

6~100 mm for flame cutting;

3 ~ 25mm for plasma cutting

Cutting Speed

200∼800mm/min. for flame cutting

Around 200~ 2000mm/min. for plasma cutting

(Based on thickness of Pipe and Plasma Power)

CNC Control Axis

6 Axis of X/Y/Z/A/B/V

X Axis: For cutting torch movement along workpiece length

Y Axis: For pipe infinite rotation;

Z Axis: For cutting torch up and down;

A Axis: For tilting cutting torch along workpiece radius;

B Axis: For tilting cutting torch along pipe length;

V Axis: Cutting torch lateral movement
