RH-3000 Мощный станок для закругления кромок пластин для верфи

1. Использование гидравлического станка для закругления и обрезки кромок RH3000
2. Тема этого раздела продукта: гидравлический станок для удаления заусенцев и закругления кромок RH3000.
3. Прижимной блок с ходом вниз в станке для скругления и обрезки кромок серии RH
4. Нижние опорные ролики в гидравлическом станке для удаления заусенцев и закругления кромок RH3000
5. Технические параметры гидравлического станка для закругления кромок листового металла RH3000.
штат:
Количество:

1.     The Usage of RH3000 Hydraulic Plate Edge Rounding and Trimming Machine:

1)      The attached first picture shows a set of RH3000 Hydraulic Plate Edge Rounding machine, which was in the process of acceptance at Wuxi JACK facility, by customers from Port Machinery Industry;

2)      Close up on finished working parts delivered from this Edge Trimming Rounding machine please check below: (Fig.1)

Fig1 Edge Round Machine Effect



2.     The Topic of this Product Section of RH3000 Hydraulic Plate Edge Deburring and Rounding Machine:

1)      In the 7th product section of “RH1000 High Power Plate Edge Rounding machine”, we give introduction on several supplementary and requisite units in RH series Edge Rounding machine in its small model (RH1000, RH800, etc.);

2)      Here we give complement on the assistant units for larger models of RH1500, RH2000, and RH3000 gantry type Edge Trimming and Rounding Machine.



3.     Downward Stroke Pressing Unit in RH series Edge Rounding and Trimming Machine:

1)      We mentioned this unit several times before. It is for pressing top surface of workpiece in the process of rounding, to prevent the workpiece surface from being propped up under the effect of both sides rounding force;

2)      1500mm width of workpiece is the threshold on considering this issue. This is the reason that, why we introduce this down pressing unit and adopts gantry type frame in Edge Trimming Rounding machine from the model of RH1500;

3)      There are three pieces of down pressing rollers in one set of RH3000 Hydraulic Plate Edge Deburring and Rounding Machine: (Fig.1)

Fig2 Edge Round Machine Effect IMG_2483

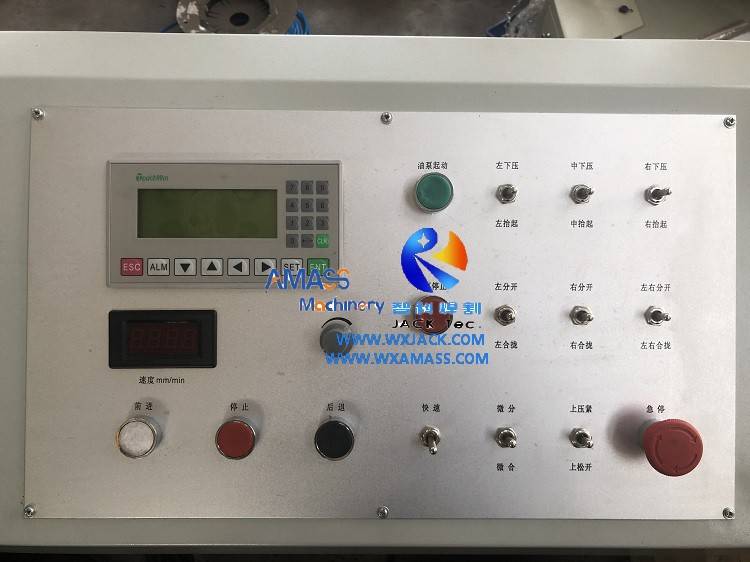

4)      The up and down movements of the pressing rollers, which is for the purpose of accommodating workpiece thickness, are hydraulic driven, controlled with related electromagnetic valves in hydraulic circuit, and manipulated with related button and switch on operating pendant of the Edge Rounding Machine: (Fig.2)

Fig3 Edge Round Machine 2

5)      Besides vertical axis, these three pieces of pressing rollers can also be moved along transverse direction by hand, to be adaptable for changed width of workpiece processed in this Efficient Edge Rounding machine;

6)      Besides acting integrally for wide workpiece (2.5m~ 3m width), these three pieces of pressing rollers can also work individually, depending on actual width of workpiece. For example, for rounding plate of 1500mm width, only the middle one piece of pressing roller is necessary to be moved downward, in the mechanical main frame of the Edge Deburring and Rounding machine.



4.     Bottom Supporting Rollers in RH3000 Hydraulic Plate Edge Deburring and Rounding Machine:

1)      In the attached first photo, the 2 pieces of long rollers put idle on the floor at the front side of machine body shown in the picture, are bottom supporting rollers used in RH3000 Edge Rounding and Trimming machine. The picture shows it is in idle state, (Not used). Please check below: (Fig.3)

Fig4 Edge Round Machine IMG_3300

2)      These bottom supporting rollers are used in pair with the downward pressing rollers described in item 1);

3)      These bottom supporting rollers are manual manipulated. Which means, they are placed into and taken out from the Edge Rounding machine body by hand;

4)      Usage of These Bottom Supporting Rollers in Edge Rounding Machine:

a)       During rounding operation in the Edge Rounding and Trimming machine, the downstroke pressing rollers descend to hold top surface of workpiece tightly;

b)      At the same time, these bottom supporting rollers hold bottom surface of workpiece tightly, to make sure the holding operation firm and reliable.



5.     Technical Parameters of RH3000 Hydraulic Plate Edge Rounding Machine:

Below are parameters of this RH3000 Edge Rounding and Trimming machine for port machine:

RH3000 Hydraulic Plate Edge Deburring and Rounding Machine

No.

Item

Parameter

1

Working Parts Width

150 ~ 3000 mm

2

Working Parts Thickness

10 ~ 40 mm

3

Working Parts Length

1000 ~ 12000 mm

4

Suitable H Beam Min. Web Beam Height

320 mm

5

Rounding and Trimming Speed

7200 mm/min.

6

Finished Rounding Radius

R2.5 mm

7

Main Rounding Rollers Diameter

φ300 mm

8

Power of Hydraulic Pump Station

4 kW

9

Max. Pressure in Hydraulic System

12 MPa

10

Input and Output Conveyor Length

10m each

11

Edge Rounding Machine Total Power

10.6kW

12

Electricity Power Specification

380V, 50Hz, 3P
